We are a manufacturer and have our own factory. our headquaters is in Shenzhen city and provide 8.4”,10.4”,12.1”,15”,17”,18.5”,19” and 22” intel Atom D525 PC, fanless industrial pc and I3/I5/I7 industrial computer and LCD monitors,we shipped many goods to oversea.
Company name: Shenzhen SUNPC technology Co. LTD
Ms Catherine, skype: shuaiyy1985
19" Industrial Panel PC with intel® Atom (Dual-core 1.8G) Processor
Model NO. IPPC-190D-2R
Features:
1. 19" LED Panel support 1280 × 1024pixel
2. Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
3. Front 6mm aluminum bezel with IP65 compliant
4. Front hardness glass protect screen ( touch option )
5. 4COM (1xRS485), 1xLPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x AUDIO,MIC
6. 1xPCI Slot, 1 xMini PCIe slot
7.Back For Power LED and HDD LED Indication
8. Wireless LAN with antenna (option)
9. Panel ( Flush ) mount with clip
10. Wide range DC 8-30V input
11. Standard VESA 75/100mm support stand ,wall mount and swing arm
| TFT Characteristics | |||
| Display Type |
19" LED panel |
Pixel Number |
1280 * 1024 |
| Pixel Pitch(RGB) | 0.297*0.297 | Contrast Ratio |
1300: 1 |
| Brightness |
250cd/m2 |
Viewing Angles |
170°(H) , 160°(V) |
| MTBF | 50,000hrs. | Response Time | 6 ms |
| OS sytem | Support DOS,Windows,Netware,Unix,Linux | ||
| System Characteristics | |||
| Processor | Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB | Chipset | Intel Atom D525 +ICH8M |
| Memory | 1 * SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. | Graphic | Intel GMA3150 chipset |
| Storage | Space for 1x 2.5" 320G HDD /16G SSD/32G SSD | Audio | Realtek®ALC662,5.1 Channel surround Audio |
| Ethernet | Two LAN onboard:2x Realtek®RL8111x(Gigabit) 10/100/1000 Ethernet | Mounting | Panel/VESA 75x75mm/100x100mm |
| VGA Port | 1 * VGA (DB-15 Connector) | Expansive Slot |
1*PCI Slot, 1 *Mini PCIe slot |
| Serial Port |
4 * COM( 3*RS232, 1*RS422/485) |
Speakers | 2*2W |
| Contruction | Aluminum front bazel and aluminum chassis | Watchdog Timer | 255 Levels , 1-255 sec. |
| Available Options | |||
| Touch Screen | Resistive,intel USB interface controller | Wireless LAN/Wifi | Meet IEEE802.11b/g standard. |
| DC Power Input | standard DC19V (DC8-30V option) | Speakers | 2 * 2W |
| I/O Connector | |||
| PS/2 | 1 * PS2 for KB/ Mouse | Lan | 2 *10/100/1000 MLan port(RJ-45) |
| VGA | DB-15 connector | USB | 4 * USB 2.0 |
| RS-232 |
4 * COM( 3 * RS232, 1 * RS422/485) |
Parallel port | 1 * SPP/EPP/ECP port |
| DC Input | 3Pin DC power input termnal block | Sound | Mic-in/line-out |
| Mechanical and Environmental | |||
| Operating temp. | 32°F~125°F ( 0 °C to 50 °C) | Storage temp. |
-4°F~140°F ( -20 °C to 60 °C) |
| Storagehumidity | 10% to 90%non-condensing | Shoc(operating) | 1G/peak (11m sec) |
| Vibration | 17 to 500Hz 1G PTP | Front panel protection |
IP65/NEMA 4 compliant |
| Dimension (WxHxD) |
456x 371 x 79mm |
Weight |
Net: 8.5KG , Volume Gross:11 KG |
|
Power Supply |
|||
| Output rating | 48W | Input Voltage | 8-30V, "external AC adapter" |
|
Certification |
CE/ FCC/ RoHS | ||
Ordering Information
|
IPPC-190D-2R 19" LED Slim Line Panel Mount Industrial Panel PC,1280*1024, 250cd/m2,motherboard with intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5"320G HDD,with 19" resistive touchscreen option,DC19V power IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*PCI MP-MS150NW ： Mini-PCIE wireless Lan card with antenna |
|
| Optional: | |
| Storage | 16G SSD/32G SSD/64G SSD |
| Wireless LAN | Wifi |
| Power supply | DC8-30V |
| Speakers | 2 * 2W |
IP65 19" Industrial TOUCH Panel PC with intel® ATOM (Dual-core 1.8G) Processor
Model NO.: IPPC-190D-2R
|
IPPC-190D-2R: 19"XGA Slim Line Panel Mount Industrial Panel PC support intel® Atom D525 Dual-core 1.8Ghz processor, with 2G DDR3 RAM, 2.5" 320G HDD, with resistive touch screen, DC19V power IO:4*COM(3xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC,1*PCI MP-MS150NW: Mini-PCIE wireless Lan card with antenna
|
| 19" Slim Line Panel mount Industrial Panel PC |
|
Feature: |
Specification
| TFT Characteristics | |||
| Display Type |
19XGA TFT LCD |
Pixel Number |
1280 x 1024 |
| Pixel Pitch(RGB) | 0.297*0.297 | Contrast Ratio |
1300: 1 |
| Light Intensity |
350 nits |
Viewable Angles | 150°(H) , 135°(V) |
| Max Colors | 16.2MB | Response Time | 8 ms |
| MTBF | 50,000hrs. | ||
| System Characteristics | |||
| Processor | Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB | Chipset | Intel NM10 |
| Memory | 2 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. | Graphic | Intel GMA3150 chipset |
| Storage | Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot | Audio | Realtek ALC662,5.1 Channel surround Audio |
| USB Port | 4 x USB 2.0 | Ethernet | 100/1000M Ethernet |
| VGA Port | 1 x VGA Connector | Expansive Slot |
1XPCI, 1 x Mini PCIe |
| Serial Port |
4 x COM( 1X RS422/485+3x RS232) |
Optical device | Not build in |
| VGA port | 1 x VGA Connector | Watchdog Timer | 255 Levels , 1-255 sec. |
| Available Options | |||
| Touch Screen | Resistive | Wireless LAN/Wifi | Meet IEEE802.11b/g standard. |
| DC Power Input | Standard is DC12V input (DC 8 -28V, DC9-36V is optional ) | ||

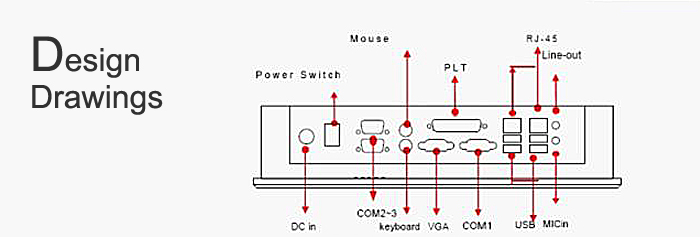

| I/O Connector | |||
| PS/2 | 1 x PS2 for KB/ Mouse | Lan | 2 x 100/1000 Lan port(RJ-45) ) |
| VGA | 1 x VGA | USB | 4x USB 2.0 |
| RS-232 |
4 x RS-232 (1X RS422/485,3x RS232) |
Power Switch | 1 x Power Switch |
| DC Input | 1 x Lockable DC Input connector | Audio | 1 x Lin-in /Lin-out / Mic-in |
| Mechanical and Environmental | |||
| Construction | Aluminum front bazel and silver Color Coating | Storage humidity |
10% to 90%non-condensing |
| Operating temperature | 32°F~125°F ( 0 °C to 50 °C) | Anti-Vibration | 17 to 500Hz 1G PTP |
| Storage temperature | -4°F~140°F ( -20 °C to 60 °C) | Dimensions (WxHxD |
456x 371 x 79 mm |
| Anti-Shock | 1g/ peak(11ms) | Weight |
Net: 8.5kg , Volume Gross:11 kg |
|
Power Supply |
|||
| Output | DC12V 1A / 120W external AC Power Adapter with Lockable connector | Input | 100~240VAC,50/60Hz |
| Certificate & Approvals | CE/ RoHS | ||
Ordering Information
|
IPPC-190D-2R 19" Slim Line Panel Mount Industrial Panel PC with 19”touchscreen, Intel Atom D525 Dual-Core 1.8GHz processor,320G HDD,2G DDR3 RAM, DC12V power supply |
|
| Optional: | |
| Storage | 16G SSD/32G SSD/8G CF card |
| Wireless LAN | Wifi |
| Power supply | DC8-28V, DC9-36V |
| CAN | 2 X CAN |
